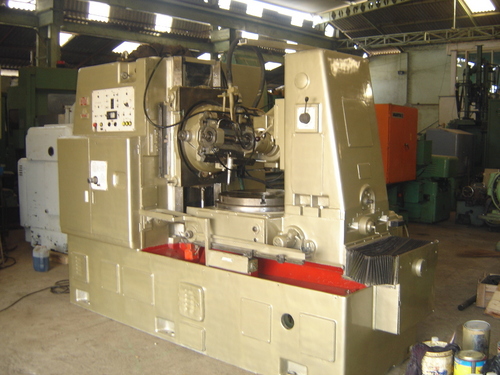

Universal Gear Hobber WMW ZFWZ 800 X 10 / II M

Product Description

Gear Related Machines

Model :  ZFWZ 800 X 10 / II MODUL

Make : WMW

Specifications :

EQUIPPED WITH:

Hob Arbor

26"T-Slotted Table

Auto Cycle

Differintial

Coolant Splash Guards

Chip Conveyor

Tangertial Feed Change Gears Full Set.




SPECIFICATIONS:

Maximum Wheel Diameter.....................................800mm
Maximum Gear Width.........................................410mm
Maximum Module.............................................10 Mod
Maximum Hob Diameter.......................................195mm
Table Diameter.............................................700mm
Turning Speed Range........................................40-280 U/Min.
Power Capacity.............................................12.5 Kw
Voltage/Frequency..........................................220/50 V/Hz
Feed-Axial.................................................0.2-8 mm/min.
Feed-Radial................................................0.1-2 mm/min.
Feed-Tangential............................................0.1-2 mm/min.
