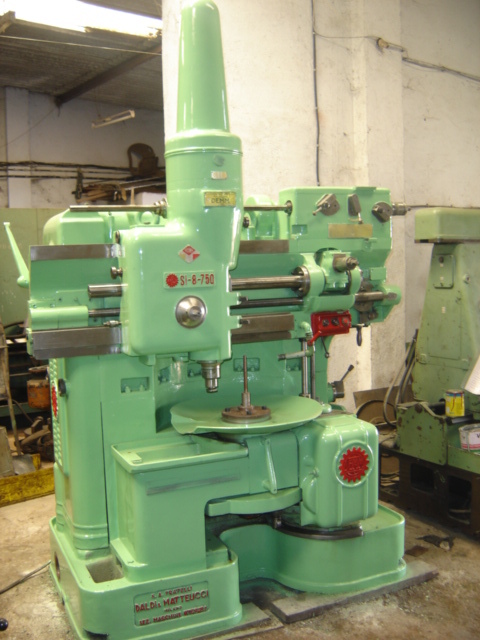

Gear Shaper si-8-750 demm
Product Details:
X
Product Description
Gear Related Machines
Model : si-8-750
Make : demm
max modul 8.
max face width 130mm.
max diameter for external straight gears 750 mm.
max diameter for external helical gears 670mm.
max diameter for internal straight gears 450mm.
max diameter for internal helical gears. 440mm.
max degrees with helical guide.. 45 Degree.
minimum degree with helical guide. 3 Degree.
stroke per minutes.......from 42 to 240.
spindle speeds....6.
feeds...8.
spindle bore.....mm. 4,45 or mm. 31,75.
main motor....HP 5
