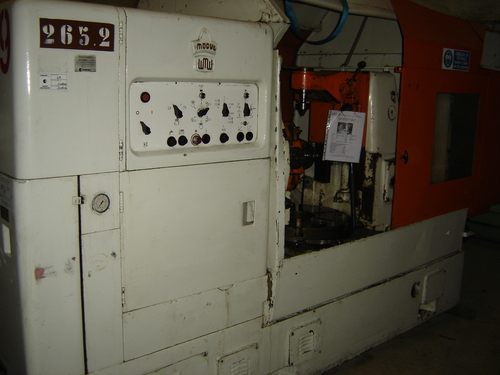

Gear Machine zfwz 800x10 WMW

उत्पाद विवरण:

अधिक देखने के लिए क्लिक करें
अपना उत्पाद साझा करें:

उत्पाद वर्णन

Gear Related Machines

Machine Id : 545 Model : zfwz 800x10 Make : wmw Year : 0 Dimensions : Power : Location : Mumbai Warehouse, India Category : Gear Related Machines Serial No : Country : Germany Type of Machine : Gear Machine Weight : 0.0 Asking Price : onrequest

Specification :

EQUIPPED WITH:

Hob Arbor

26"T-Slotted Table

Auto Cycle

Differintial

Coolant Splash Guards

SPECIFICATIONS:

Maximum Wheel Diameter.....................................800mm
Maximum Gear Width.........................................410mm
Maximum Module.............................................10 Mod
Maximum Hob Diameter.......................................195mm
Table Diameter.............................................700mm
Turning Speed Range........................................40-280 U/Min.
Power Capacity.............................................12.5 Kw
Voltage/Frequency..........................................220/50 V/Hz
Feed-Axial.................................................0.2-8 mm/min.
Feed-Radial................................................0.1-2 mm/min.
Feed-Tangential............................................0.1-2 mm/min.
