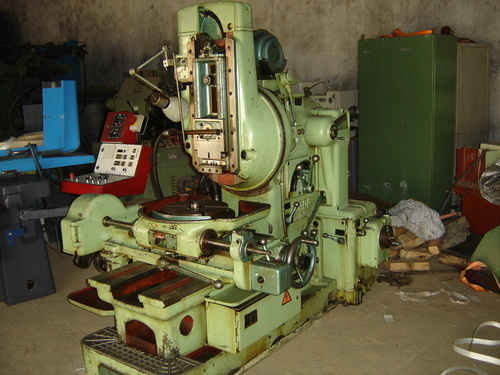

Gear Shaper Maag 45

मूल्य/उद्धरण प्राप्त करें

उत्पाद विवरण:

अधिक देखने के लिए क्लिक करें
अपना उत्पाद साझा करें:

वापस कॉल करने का अनुरोध जांच भेजें

उत्पाद वर्णन

Gear Shaper Maag 45

Machine Id

571

Model

Make

Maag

Year

1973

Dimensions

Power

Location

Mumbai Warehouse,India

Category

Gear Related Machines

Serial No

Country

Switzerland

Type of Machine

Gear Shaper

Weight

0.0

Asking Price

onrequest

Specification :

The MAAG SH-45 Gear Cutting Machine is suitable for machining of:
* External & internal cylindrical gears

* Pinions *

Spur & helical gears *

Gear teeth with longitudinal and profile corrections

* Cluster gears

* Double helical gears

* Sprocket wheels *

PARTICULAR ADVANTAGES:

* Wide range of applications (gear diameters 0.8" to 18")
* High economy (Thanks to simple, inexpensive tooling and high rate of
metal removal)
* High accuracy (Long life assured by operating principle and robust
machine construction)
* Automatic machining cycles (A large number of automatic working cycles
are available for the various fields of application)

PRINCIPAL SPECIFICATIONS AS PER CATALOGUE:

Maximum/minimum rated diametrical pitch... 4.2/25
Maximum/minimum rated gear blank... 18"/0.8"
Maximum rated spur gear face width... 4.75"
Maximum/minimum number of teeth... 250/6
Maximum helix angle... 60 Deg.
Maximum weight of gear and fixture... 880 lbs.
Maximum/minimum stroke of cutter slide... 5.7/0
Maximum/minimum position of cutter above table at stroke... 12.6/5.5
Range of cutter strokes (12)... 37-235 SPM
Strokes per pitch, steplessly adjusted... 9 half 80
