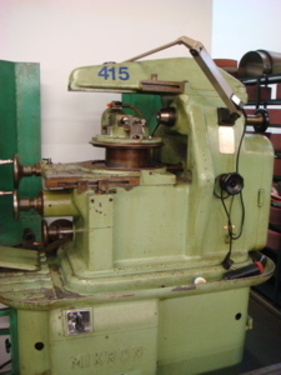

Universal Gear Hobber for smaller gears Mikron 102.05
उत्पाद विवरण:
X
उत्पाद वर्णन
Universal Gear Hobber for smaller gears Mikron 102.05
|
|
Specification :
| Work capacity:max. diameter | 120 | mm |
| max. module | 2.00 | |
| Workpiece length max. | 130 | mm |
| Pitch min. | 6 | |
| max. | 325 | |
| Spiral lead: | ||
| from | 2 | mm |
| up to | 5000 | mm |
| Spiral lead angle: | ||
| from | 1 | ? |
| up to | 89 | ? |
| Gear hob: | ||
| min. diameter | 130 | mm |
| Milling cutter speeds: | ||
| number (steps) | 14 | |
| from | 140 | rpm |
| up to | 1870 | rpm |
| Feeds: | ||
| axial from | 0.05 | mm/r |
| up to | 3.0 | mm/r |
| Voltage 50 Hz 3x | 380 | Volt |
| Power | 1.50 | HP |
| Machine's weight about | 800 | kg |
| Overall dimensions machine: | ||
| Length | 1100 | mm |
| Width | 900 | mm |
| Height | 1550 | mm |
