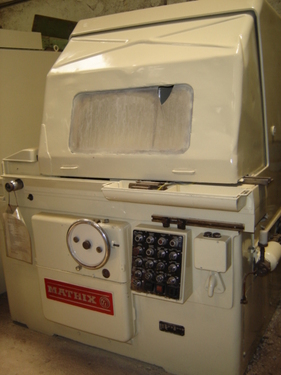

Used Tapp Grinder & Flute Grinders Matrix 79

मूल्य/उद्धरण प्राप्त करें

उत्पाद विवरण:

अधिक देखने के लिए क्लिक करें
अपना उत्पाद साझा करें:

वापस कॉल करने का अनुरोध जांच भेजें

उत्पाद वर्णन

Tapp Grinder & Flute Grinders

Machine Id

281

Model

Make

matrix

Year

Dimensions

Power

Location

mumbai warehouse, india

Category

Tapp Grinder & Flute Grinders

Serial No

Country

Wales

Type of Machine

tapp grinder

Weight

0.0

Asking Price

oncall

Specification :

Work produced has twice the pitch of the leader bar and nut

Maximum Diamter of Thread Recommended..... 2 in. (50 nun)

Maximum Length of Thread capable of being Ground at One Setting. in. (100 mm

Maximum Length admitted Between Centres.... 12 in. (300 mm)

Minimum Pitch Recommended...60 T.P.I.(0.5 mm)

Maximum Helix Adjustment of Wheelhead for Left or Right Hand Threads 10

Maximum Capacity of Collets f in. (16 nun) dia x any length

Headstock and Tailstock centres.... No. 2 Morse

Number of Flutes 2 to 12

Workspeed 4.4 to 158 r.p.m.

High Range 15.5 to 158 r.p.m.

Low Range 4.4 to 39 r.p.m.

Description :

Reverse Speeds : Past 100 or 400 r.p.m.

Slow same speed as selected in forward direction.

Wheel Sizes... 18 in, x 3/4 in. x 9 in. ( 460 x 19 x 230 mm) 18 in. x 1 in. x 9 in. ( 460 x 25 x 230 mm)

Coolant Tank Capacity (MSE Clarifier 40-18-70) 70 gallons (318 litres)

Coolant Pump Delivery 32 gallons (146 litres) per min. (nominal rating) H.P. of Wheelhead Main Motor6 at 1430 r.p.m. (Grinding Speed) H.P. of Wheelhead Crushing Truing Motor 0.5 at 1440 rpm H.P. of Gearbox Motor 1.0 at 1440 rpm H.P. of Automatic Crusher Unit Motor 0.1 at 1440 rpm
3010 x 2934 mm
