Gear Tester Maag Sp 60

उत्पाद वर्णन

Gear Related Machines

Model : sp 60

Make  : maag

Dimensions  : 1880x1300x1970mm

Please see Working Video To See 2008 Rebuilt Machine Under Power.

Please click online on links to see machines underpower

Video Number 1

Video Number 2

This Machine Is Completly Rebuilt & Installed With Brand New Software from Prime Technology India .

This Machine  Can be Inspected Under Power, All Dimensions of componet Can be Tested & Print Out Shall Be Taken out.

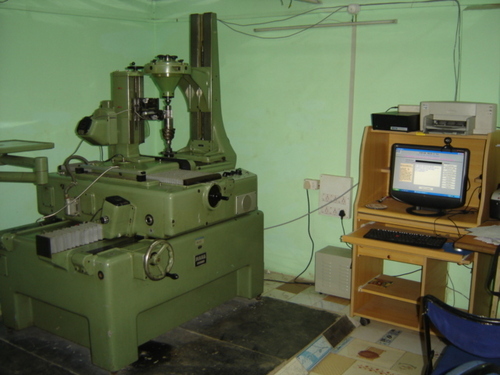

The Photo Of The Machine Is At Actuals & Is Testing A Component after Rebuilding & Installing Brand New Software System, Probs etc.

Tailstock type SPA-F-65/75.

Excellent condition Various accessories.

Maximum/Minimum base circle diameter 600/25mm

Maximum Module 20 Minimum Module 1

Maximum Generative cross travel 400m

Maximum Tip circle diameter 650mm

Max.Pinion Shaft diameter at max. height between centre 370mm

Maximum tracable facewidth at helix angle Zero Deg 150mm , at 60 deg angle 75mm

Maximum Pinion Shaft length 750mm

Maximum Permissible gear weight 500kg
