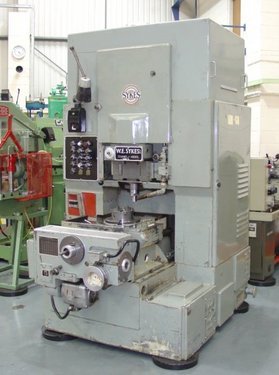

| Specification : PITCH, MAX 4 DP. ( 6,3 MOD) PITCH, MIN 64 DP.(0,5 MOD.) Storke: Standardmachine 2 in. (63,5 mm) Storke: Long storke machine 4 in. (102 mm) Helix angle, max. 45 Degree Blank diameter, External Gears 9.5 in. (242 mm.) (with 4 in. cutter) Max. work to cutter center distance 7 in. (178 mm) Max. pitch diameter Internal gears 8 in. (203 mm) Max. diameter swing of work or Fixture at 1.5 in (38,1 mm.) Centers 15 in. (381 mm) Nominal spindle diameter 2.6875 in Cutter spindle location (Standard) 1.5 in. Maximum cutting speed 150 ft/ min. Maximum cutter to work ratio 5:1 Cutting speed range: Standard machine 82-617 s.p.m Long storke machine 60-375 s.p.m Max. Saddle drop-off 1.00 in. (25,4 mm) Overhead work support: Working height, max 11 in. (280 mm.) Working height, min 3 5/8 in.(92 mm) Infeed: Type Electro-mechanical Range: Infeed per stroke 0.0005 - 0.002 in Number of cuts 1 to 4 (or more) Depth setting Trip dogs on drum Saddle drop off Auto, power traverse Infeed direction IN or Out as required Saddle offset 0.6 in. right or left Motors: Type Totally enclosed Number 4 or 5 Main Motor 3 H.P. 740 r.p.m Coolant motor 1 H.P. 1420 r.p.m Lubication pump Motor 1/8 H.P. 920 r.p.m Infeed drive motor 0.5 H.P. 920 r.p.m Work truing motor (when fitted) 1.5 H.P. 920 r.p.m Control circuit Voltage 110 volt Motor overload Thermal Electric clutches Warner Westool 90v. D.C Electric brake Warner Westool 90v. D.C |
